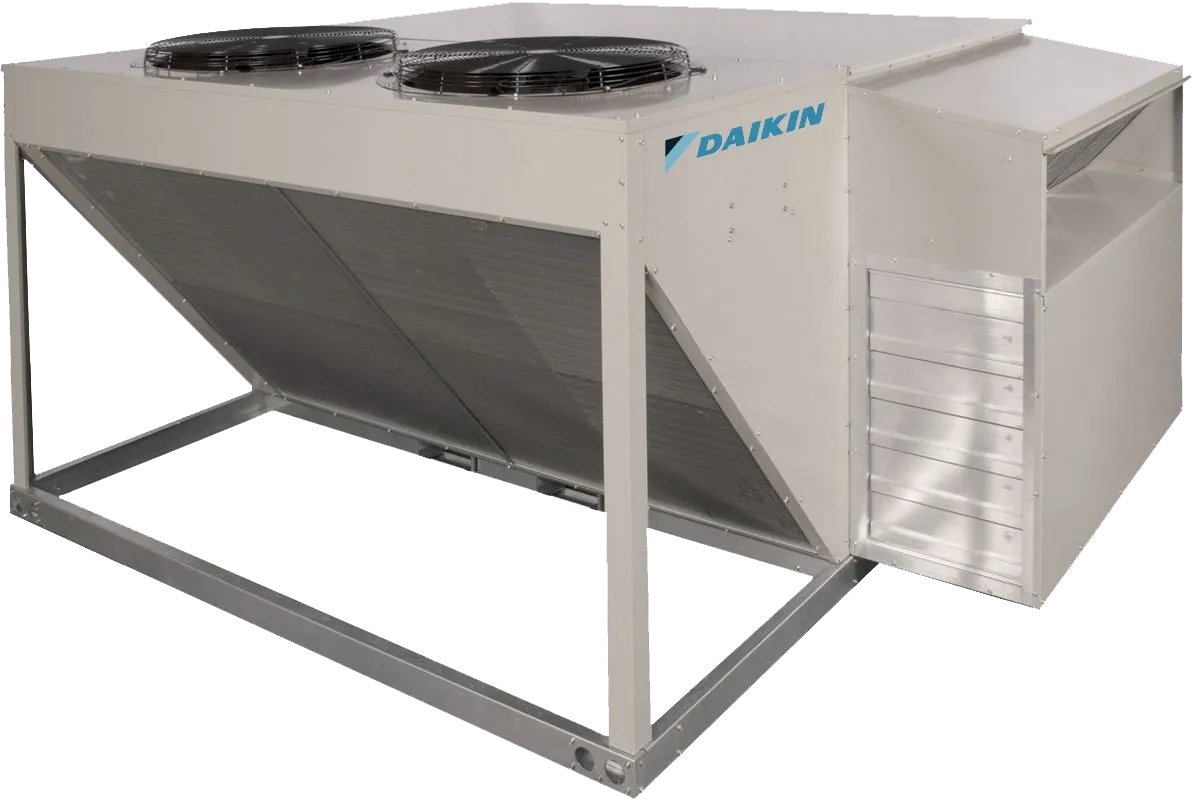

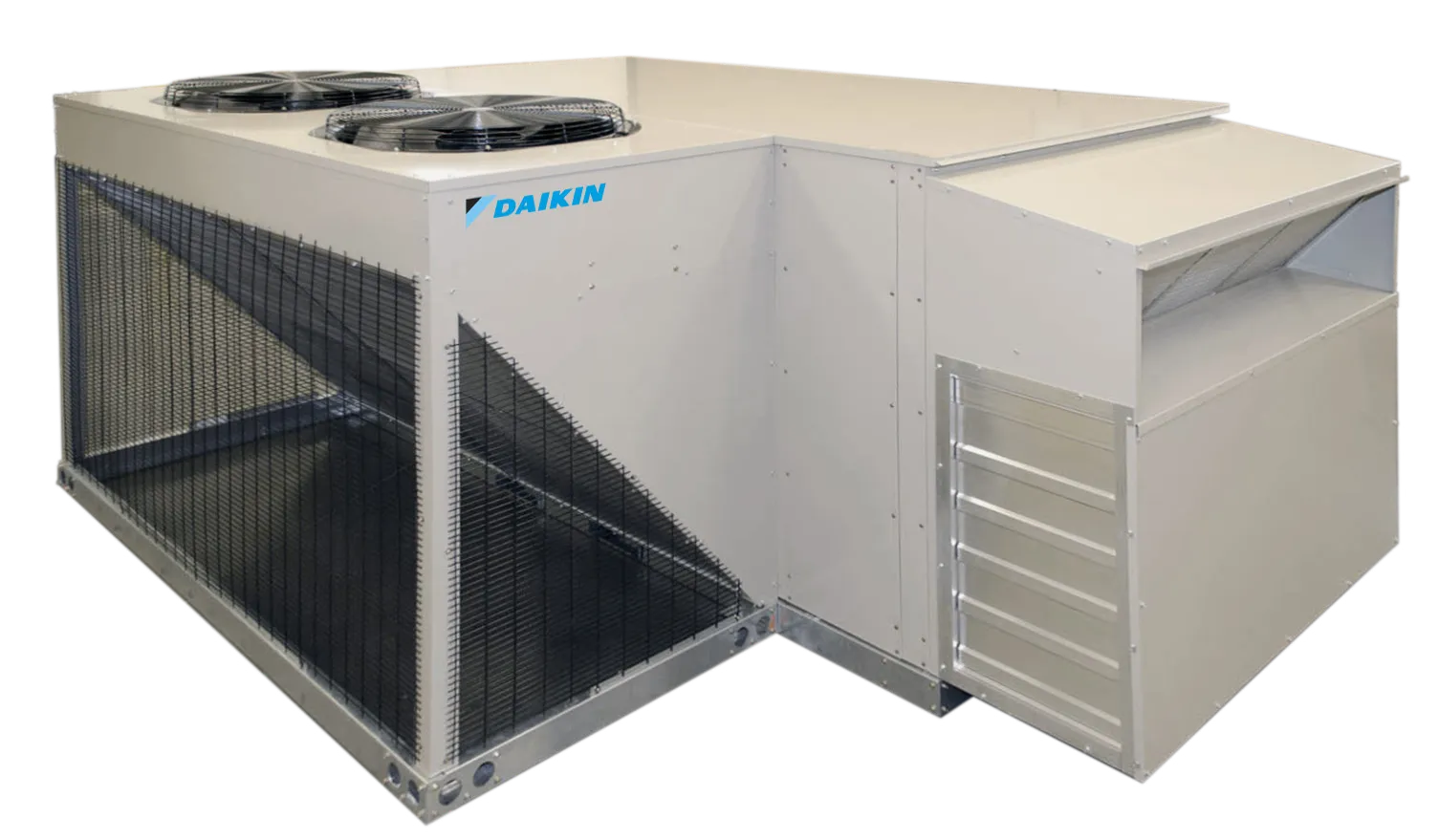

Daikin Rebel 7.5 Ton Commercial Packaged Rooftop System - Cooling and Heat Pump

Upgrade your HVAC system and join the Rebel revolution - the ultimate solution for industry-leading performance and climate-controlled comfort. With Rebel’s new 3-31 ton heat pump design, you can enjoy year-round heating and cooling, even in freezing temperatures as low as -10°F. Remove reliance on fossil fuel and capitalize on a smaller carbon footprint. With Rebel's cutting-edge technology and low-GWP R-32 refrigerant, you'll support environmental initiatives while enjoying astounding energy savings of up to 55% above ASHRAE standards. Rebel’s remarkable part-load efficiencies of up to 22.7 IEER make it perfect for any low-rise commercial building — from schools and healthcare facilities to office and manufacturing buildings, Rebel has got you covered. Upgrade to Rebel and experience the power of performance and sustainability.

Features and Benefits:

• Optimum comfort via modulating capacity control

• Exceptional part-load efficiencies

• Enclosed for quiet operation

• Improves comfort with outstanding discharge air temperature control

Variable speed heat pump

• More economical than gas heat during winter

• Back-up heat options for extreme cold weather and defrost operation

• Greater comfort control via modulating capacity

Direct-drive variable speed ECM or VFD fan motors

• Increase system reliability and efficiency by eliminating belts and bearing setscrews

• Increase energy savings at light-load conditions

• Superior fan efficiencies with backward-inclined design

MicroTech® unit controller

• Simplified BAS integration using Open Choices™ feature with BACnet® or LONMARK® communications

• Improved serviceability with intuitive unit diagnostics

• DIII gateway for iTouch VRV controls

Electronic expansion valves

• Deliver optimum control of superheat

• Prevent liquid refrigerant compressor slugging

• Increase efficiencies by lowering head pressure

Seamless top panel and hinges access door

• Leak-free construction

• Easy service and maintenance access using 1/4-turn latch doors

100% outdoor air option

• Low-leak dampers, double-wall blades, edge, and jam seals improve energy savings

• Efficient modulating compressor, hot gas reheat, and 100° temperature rise furnace

Energy recovery wheel

• Recovers exhausted heat and moisture energy

• Increases energy savings up to 40% more

• Quickens service via unitary construction

• Reduces commissioning time with single-point power connect

• Simplifies operation with integrated unit control

2” and 4” slide-out filter racks

• Quick serviceability with easy filter change-outs

• MERV 8 prefilters, MERV 11 - 14 after-filters

• 4” factory-installed filters (16 - 28 tons)

Supplemental heat

• Gas furnace with 10:1 turn-down

• Electric heat with SCR

• Hot water heat

Double-wall foam cabinet

• Provides for fiber-free air stream

• Energy efficient R7 and R13 foam-injected panels

Low audible condenser fans

• Low ambient energy savings with variable speed ECM motor(s)

• Fully modulating head pressure control

Dehumidification control

• Free heat using modulating hot gas reheat

• Tight humidity control without over-cooling the space

• Maintains desired indoor dew point temperatures

Low radiated noise

• Noise dampening enclosed compressor

• Quiet ECM or VFD fan motors

• Reduced motor speed and harmonics at part-load

Stainless steel, double-sloped drain pan

• Prevents corrosion and standing water for higher IAQ

• Overflow protection switch (16 - 28 tons)

Economizer

• Free cooling when outdoor conditions prevail

• Meets local requirements for fresh air provision

• Integrates operation with mechanical cooling

• Increases efficiency with demand control ventilation

• Superior ventilation control with outdoor air monitor

Outdoor air damper control

• Building pressure over-ride automatically opens dampers

• Monitor ensures precision airflow

• Efficient integrated operation with mechanical cooling

• Maintains ventilation with demand control

Capitalize with 95% more energy savings:

If you are a commercial building owner, facility manager, or specifying engineer with demanding rooftop performance criteria, you need the best performance, period. Choose a Daikin Rebel rooftop system and you’ll experience outstanding energy efficiency, unwavering performance, low-audible sound, superior comfort control and dehumidification, and substantial cost-savings

Producing an astounding 20.6 IEER and 95% energy savings above ASHRAE’s 90.1 standard, Rebel generates efficiencies previously unachievable in a commercial rooftop system.

Rebel’s exceptional performance makes it ideal for any low-rise commercial building like schools, offices, grocery, or retail stores, as well as 100% outdoor air, VAV with duct pressure control, single-zone VAV, and VRV applications.

Inverter compressor benefits

At the core of Rebel’s advanced technologies is the inverter scroll compressor, which provides superior energy efficiencies and cost savings unmatched by typical fixed speed, digital scroll, or 2-stage scroll compressors. Non-inverter compressors cycle excessively resulting in locked rotor current spikes, increased compressor wear, temperature fluctuations, erratic economizer control, and overcooling (see below). Conversely, inverter scroll compressors deliver only the required energy to satisfy space conditions, which provides exceptional energy savings, precise temperature control, ultra-quiet operation, and accelerated equipment payback.

Advanced technologies

To meet and exceed demanding building performance criteria, Rebel integrates advanced HVAC technologies including:

• Variable speed inverter compressor

• Variable speed heat pump with supplemental gas, electric, hot water, or modulating heat

• Direct-drive fans with variable speed ECM or VFD motors

• Energy recovery wheel

• Outdoor air monitor

• Modulating hot gas reheat

• MicroTech® unit controller

• SiteLine™ Building Controls
