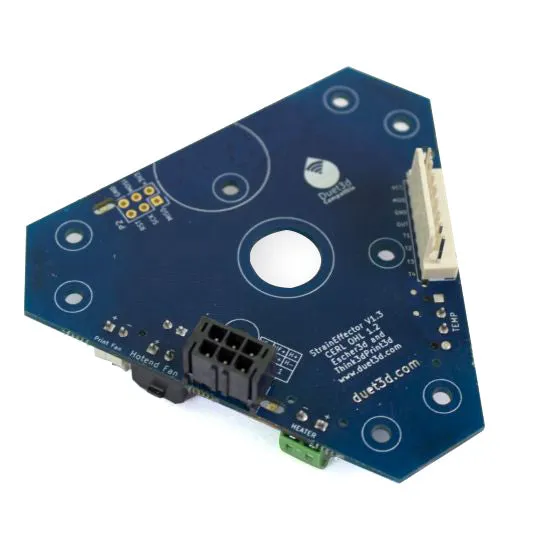

Duet 3D smart effector kit for delta printers

The Smart Effector by Duet for Delta printers allows the HotEnd to be used as a Z probe giving fantastic accuracy across the whole delta build area by eliminating the effect of tilt. It uses precision PCB manufacturing to ensure equal hole spacing between the effector and the carriages on the towers, further improving accuracy.

The smart effector simplifies wiring of hotend components with plug connectors from thermistor and fans along with a screw terminal for the heater cartridge. Molex and microfit connections are then used for wiring looms back to the control electronics. Crimp pins and housings are supplied for all connections. Onboard LEDs for print illumination are compatible with either 12V or 24V power supplies with a jumper selecting the voltage.

Key features:

- Supplied with 3 PCB carriage adapters with 20mm mounting hole spacing compatible with common linear rails and wheel carriages.

- Compatible with Haydn Huntley’s Magball delta arms.
