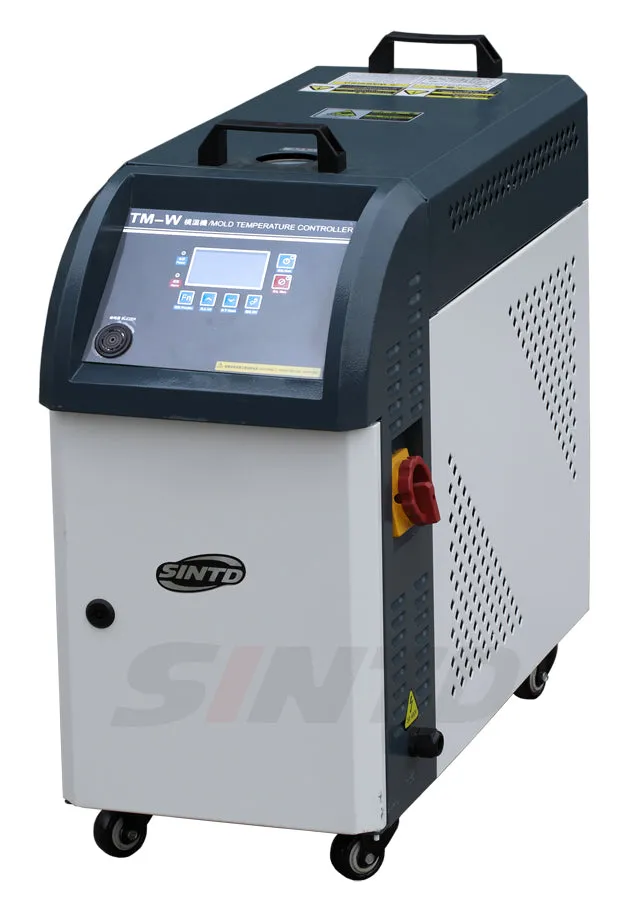

The TM-W series of water heaters are used to heat the mould and maintain set temperature.
High temperature water from the mould is cooled by direct cooling and then flows through the pipe heaters via internal high-pressure pump for heating to a constant temperature.
With our optimised design, water can reach a maximum of 120degrees celsius and the accurate PID multi stage temperature control system can maintain an accuracy of /- 1degree celsius.
| Model: | TM900W |
| Heater (Kw): | 9 |
| Pump (Kw): | 0.75 |
| Max pump flow (L/min): | 42 |
| Max pump pressure (bar) | 5 |
| Heating Chambers: | 1 |
| Mould Coupling Size: | 3/8" |
| Dimensions (HxWxD) | 655x280x740 |
| Weight (Kg): | 72 |
