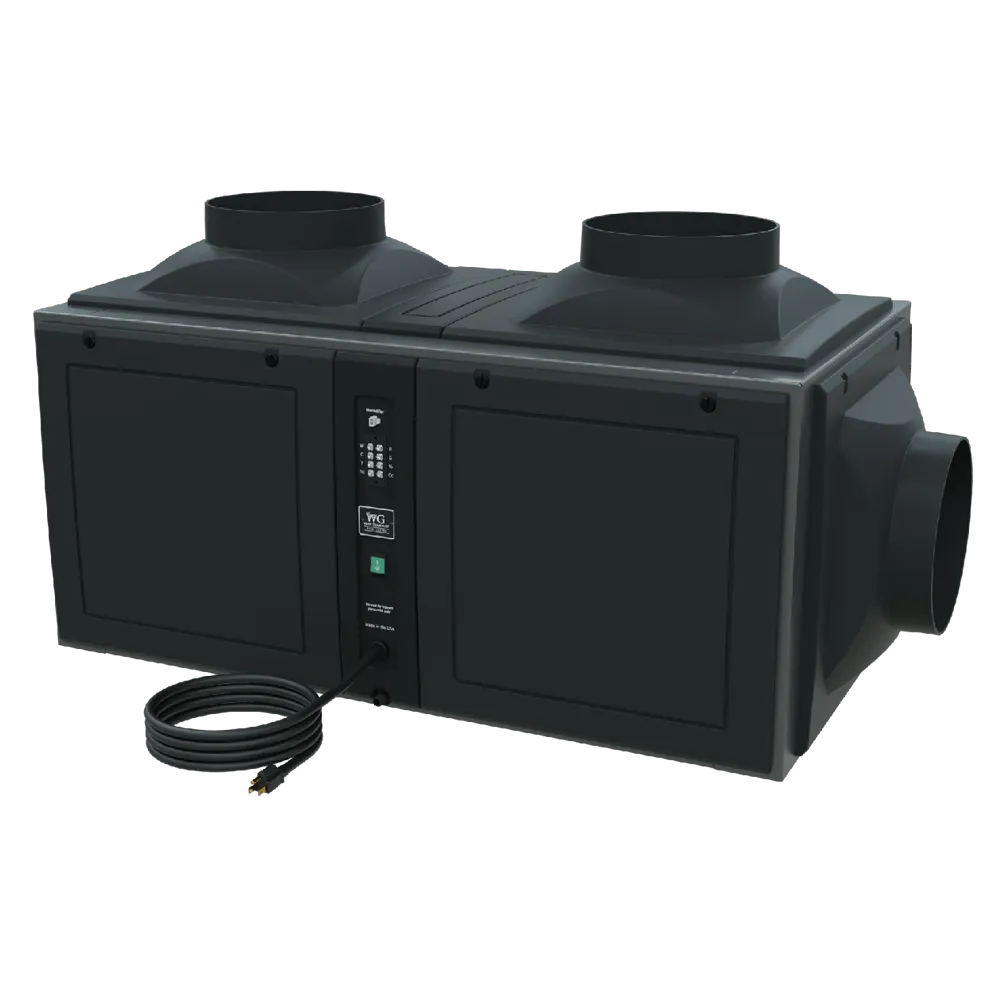

Name: Wine Guardian DP50 Ducted Pro Commercial and Residential HVAC - 60 HZ
SKU: 263407

Wine Guardian DP50 Ducted Pro Commercial and Residential HVAC Sentinel Series - 60 HZ Review

Looking for an energy-efficient wine cooling system for your wine cellar or other low-temperature storage needs? The Wine Guardian DP50 Ducted Pro Commercial and Residential HVAC - 60 HZ is worth checking out!

NOTE: Wine Guardian Pro Systems use 24-volt electronics. The DP50 operates on a 60Hz system, which is commonly used in most of North America, including the USA and Canada. It has a unit capacity of up to 6,570 BTU/h.

The Wine Guardian DP50 Ducted Pro Commercial and Residential HVAC - 60 HZ is a great cooling solution for medium-sized residential and commercial wine rooms with a volume ranging from 650 to 3000 cubic feet.

The DP50 has advanced refrigeration controls and works with modern smart thermostats. It has more duct collar connections located at the condensing part of the cooling unit for additional ducting options, and it also includes an Electric Heat option with a factory-mounted heater for protection against low ambient temperatures.

Ideal for applications such as , document preservation, server room air conditioning, art storage, instrument storage, and long-term food storage, this Pro Ducted system can maintain temperatures between 52-70°F (11-21°C.) And with 24-volt electronics, these systems can easily integrate with your existing smart home or commercial building management system. With up to three times more insulation than previous versions, this system is designed to be the strongest and most efficient on the market.

Other sizes: for 250-2000 cu.ft, for 850-4500 cu.ft, and for 1500-7000 cu.ft.

Available in water-cooled version:

Available in standard version:

Looking for more options to protect your wine collection?

Wine Guardian offers the following options to provide extra protection:

Standard: The standard unit comes with low ambient protection, which protects it against cold temperatures that fall below 5°C (40°F).
Standard w/ Electric Heater: This feature protects wine cellars from extremely low temperatures by allowing you to set activation between 2 - 6°F (-17 - -14°C) below your desired setpoint.

To preserve the quality of your wine collection, it's important to maintain the proper level. Temperature control alone won't suffice, so we advise using Wine Guardian Humidifiers. Although these are not mandatory, we highly suggest investing in one. You can attach the Integrated Humidifier to your DP50 wine cooler unit or choose the Wine Guardian Freestanding Humidifier if you prefer it to be separate.

Advantages of Wine Guardian Ducted Cooling Systems

Wine Guardian ducted systems are versatile and self-contained. Designed to be extremely flexible in terms of installation and design. These systems use advanced cooling technology to create the perfect environmental conditions for wine collections of any size and in any type of space — including residential, restaurant, or commercial wine cellars.

Wine Guardian wine cellar cooling ducted systems have everything needed in a single unit — evaporator, fans, compressor, condenser, and controls. A grille inside the cellar wall is connected to the self-contained unit outside of the wine cellar insulated flexible ductwork. They're one of the !

Looking for more choices? Take a look at our range of . You may also want to explore more .

Organize and design your wine cellar with modern and unique wine racks from !

WHY BUY FROM US: Wine Coolers Empire is a trusted dealer of premium wine cellar refrigeration units, commercial wine cellar cooling units, residential wine cellar coolers, and wine room humidifiers. More Wine Guardian reviews can be found on our page.

for any questions or concerns. For information on order processing, shipping options, and delivery times, please visit our .

Buy Wine Guardian DP50 Ducted Pro Sentinel Series Wine Cooler Units - 60 HZ today and enjoy your amazing wines at their best temperature!

Features

Features:

OUT OF SIGHT, OUT OF MIND
Enjoy the peacefulness of your wine room without any bulky wine cellar equipment getting in the way. With a ducted wine cellar air conditioner, the cooling unit is installed outside the wine cellar so that your wine stays cool and your cellar looks and functions great without any loud noise. It's a great way to keep your wine cellar organized and serene.

INSTALLATION WITHOUT THE HASSLE
Ducted wine cellar cooling units are made easy to install for contractors. All they need to do is connect the ductwork, make the drain connection, and plug it in – no copper cutting required, and no licensed contractor necessary on-site.

If you need to install the wine cooling system against a wall or ceiling, that's easy too. You can configure the ducts in multiple ways without having to remove the fan motor or any other internal parts.

A SILENT GUARDIAN
Wine Guardian is like a loyal knight from the olden days, guarding your wine room day and night. It has air sensing technology and a modern remote interface controller that continuously monitors the temperature and humidity of your cellar. If the conditions didn't meet the optimal range, the cooling system will bring it to the ideal wine cellar temperature. Your wine collection will never be at risk.

FULL CONTROL IN ANY ROOM
The remote interface controller for the ducted system lets you adjust the temperature and check the humidity levels. The controller uses Wine Guardian's Wireless2Base™ Technology, which means you can place it anywhere that's convenient for you – in the cellar, kitchen, or living room. If you need to measure the temperature and humidity levels outside the cellar, you can connect an additional controller and remote sensors to get accurate readings. This makes it easy to keep an eye on your wine room's conditions from anywhere in your home.

PROPER WINE CELLAR HUMIDITY
Proper wine cellar humidification is really important to fully enjoy the flavors of your wine. Without enough humidity, your wine can be damaged by mold, evaporation, and dry corks, which can all affect its quality. Wine Guardian humidifiers are a great solution. They attach directly to your ducted system and add humidity back into your cellar. This helps keep your wine at its best and ensures you can enjoy every last drop.

SERVICEABILITY SIMPLIFIED
Wine Guardian self-contained wine room cooling units are designed to be simple for servicepersons to maintain. With easy quarter-turn fasteners, they can quickly access the ducted unit, make any necessary repairs, and move on to the next job. What's more, unlike other competitors, all Wine Guardian units can be fully serviced in the field, without needing to be sent back to the factory. This saves you time and money and ensures that your cooling system stays up and running smoothly.

SENTINEL SERIES
All ducted systems are now a part of the Wine Guardian Sentinel Series. This new series is an updated and improved design that features an all-new composite material that makes the system stronger, more efficient, and more beautiful than ever before.

Specifications

Specifications:

Model: DP50
Line Frequency: 60 HZ
Capacity: 2700 – 6320 BTU
Volume: 650 – 3000 ft³
Length: 41.5"
Width: 22.5"
Height: 19"
Weight: 125 lbs
Electrical: 115/1/60

Manuals

Manuals:

Manufacturer's Warranty

Wine Guardian warrants, to the original buyer, its goods and all parts thereof to be free from defects in material and workmanship for a period of two (2) years from the date of invoicing assuming NORMAL USE AND SERVICE

Need assistance? Talk to an Expert at 1-888-407-7770 or email: [email protected] to get the best-suited wine cooling system for your needs.

Options

Available Options

You may upgrade the performance and durability of your wine cooling systems by adding Wine Guardian parts and accessories. The system is upgraded and protected by these add-ons.

Cooling Options

Standard w/ Electric Heater
Keep your wine cellar protected from dangerously low temperatures with the Electric Heater option. This add-on is adjustable and allows activation to be set between 2 - 6°F (-17 - -14°C) below your desired temperature.

With this feature, rest assured that your wine will be kept safe from extreme temperature drops. Invest in an Electric Heater to ensure that your wine collection is always kept at the .

Humidifier Options

Integrated Humidifier
Humidifiers help maintain the ideal wine storage conditions by adding moisture to the wine space. The Wine Guardian Integrated Humidifier directly attaches to the Wine Guardian cooling system, using the same power source and remote controller.
Freestanding Humidifier
The Wine Guardian Freestanding Humidifier is installed inside the wine cellar to maintain the ideal level of humidity required for proper long-term storage. The humidifier can be operated using the existing Wine Guardian controller.

Warranty Options

Extended Warranty
By choosing this option, the warranty period for the compressor, evaporator coil, and condenser coil (parts only) will be extended by three (3) years.
